Layout

On the following pictures can be seen the location of LPC4350 Demoboard components.

LPC4350-DB1 schematics lpc4350-db1-schematics.pdf

LPC4350-DB1 mechanical drawing lpc4350-db1-mechanical-drawing.pdf

Board dimensions - 60x94 mm.

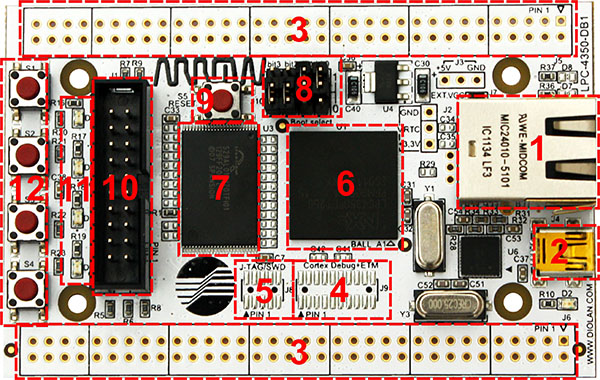

Top view:


  1. 10/100 MBit Ethernet Connector;
  2. USB Mini Connector;
  3. 2 Extension Connectors;
  4. Cortex Debug+ETM;
  5. J-TAG/SWD;
  6. NXP microcontroller with embedded SDRAM;
  7. 16M Flash Memory;
  8. Boot Select;
  9. Reset Button;
  10. J-TAG Connector;
  11. 4 LEDs for debugging;
  12. 4 Input Buttons for debugging;
  13. Soldering place for additional memory chip (from back side).
