Build Configurations

Most of the LPC43xx source code examples has 5 build configurations:

  1. LPC4350_IntSRAM configuration can be used with LPC4350-DB1 evaluation board to run application from the internal SRAM of LPC4350 microcontroller.
  2. LPC4350_ExtFlash configuration can be used to run application from the on-board external flash, that is assembled on LPC4350-DB1 evaluation board.
  3. LPC4357_IntSRAM configuration is designed for LPC4357-DB1 evaluation board. Use it to run application for the internal SRAM of LPC4357 microcontroller.
  4. LPC4357_IntFlash configuration can be used to download the application into internal flash of LPC4357 microcontroller and run it from there.
  5. LPC4357_ExtFlash configuration is designed to download and run the application for the external flash that is assembled on LPC4357-DB1 evaluation board.

The LPC18xx source code examples has 2 build configurations:

  1. LPC1850_IntSRAM configuration can be used with LPC1850-DB1 evaluation board to run application for the internal SRAM of LPC1850 microcontroller.
  2. LPC1850_ExtFlash configuation is designed to download the application into the external flash that is assembled at LPC1850-DB1 evaluation board and run it from there.

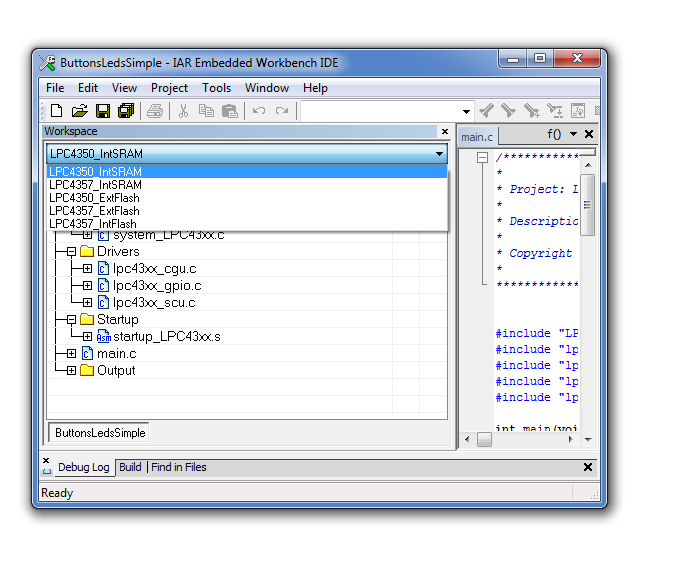

You can select the desired configuraton from the drop-down list at the top of Workspace pane in IAR Embedded Workbench IDE:

build configuration selection in IAR

Optimization Level

The low optimization level is set in all build configurations. This optimization level enables step-by-steb debugging of the examples source code.

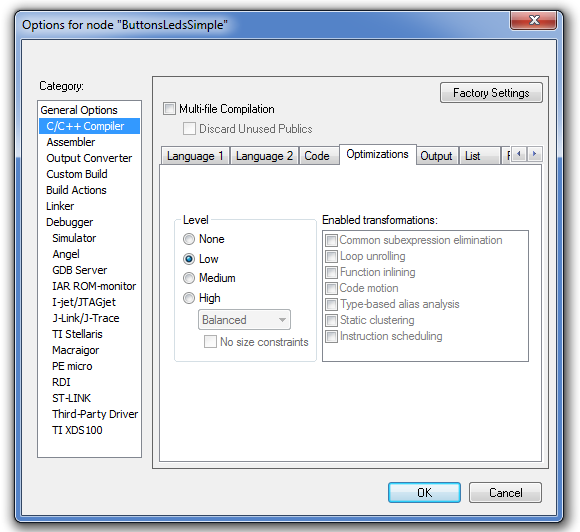

If you need to change the optimization level in the IAR Embedded Workbench IDE, go to the project options, choose C/C++ Compiler category and switch to the Optimizations tab:

 Configuring optimization level in IAR
